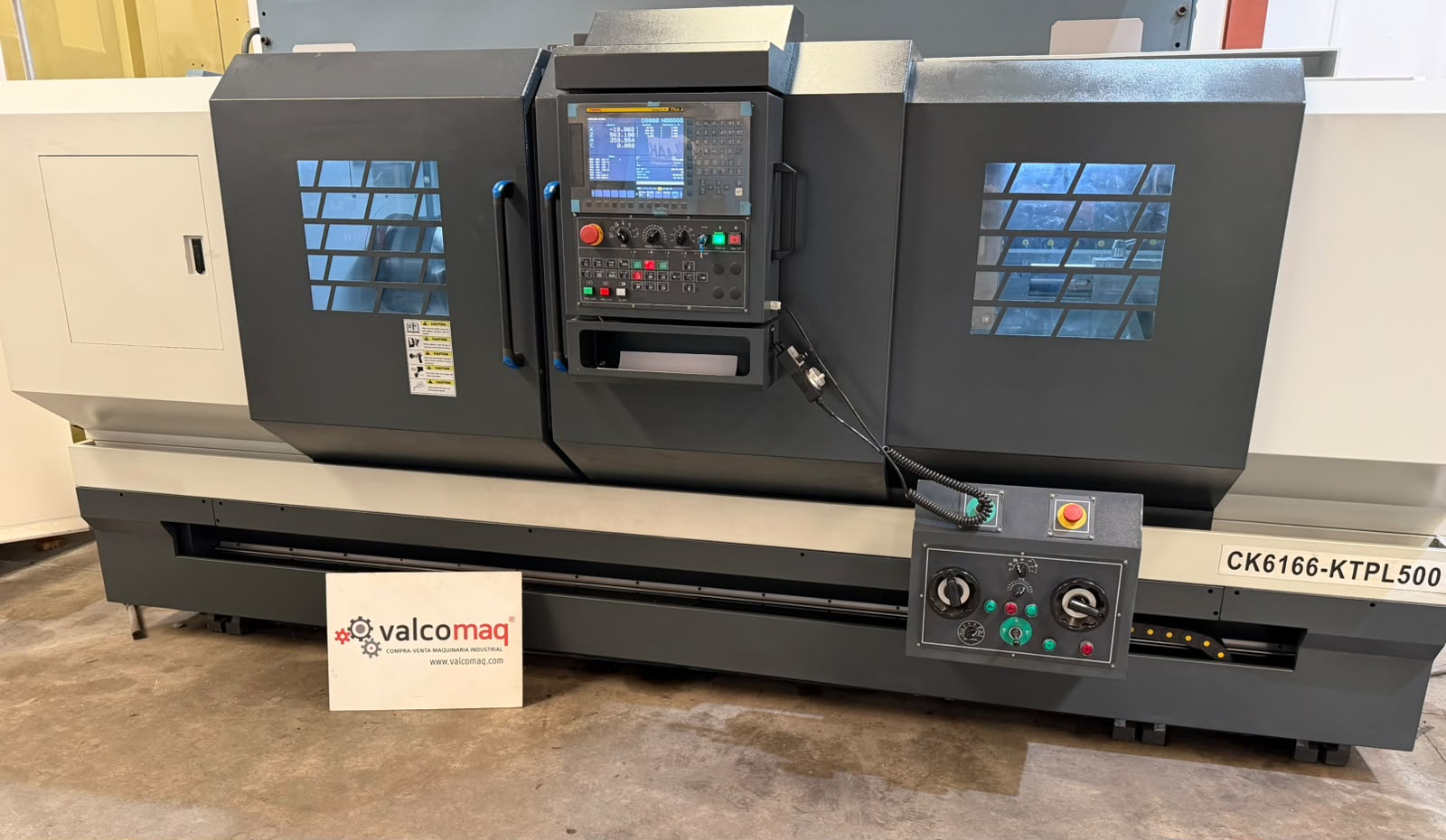

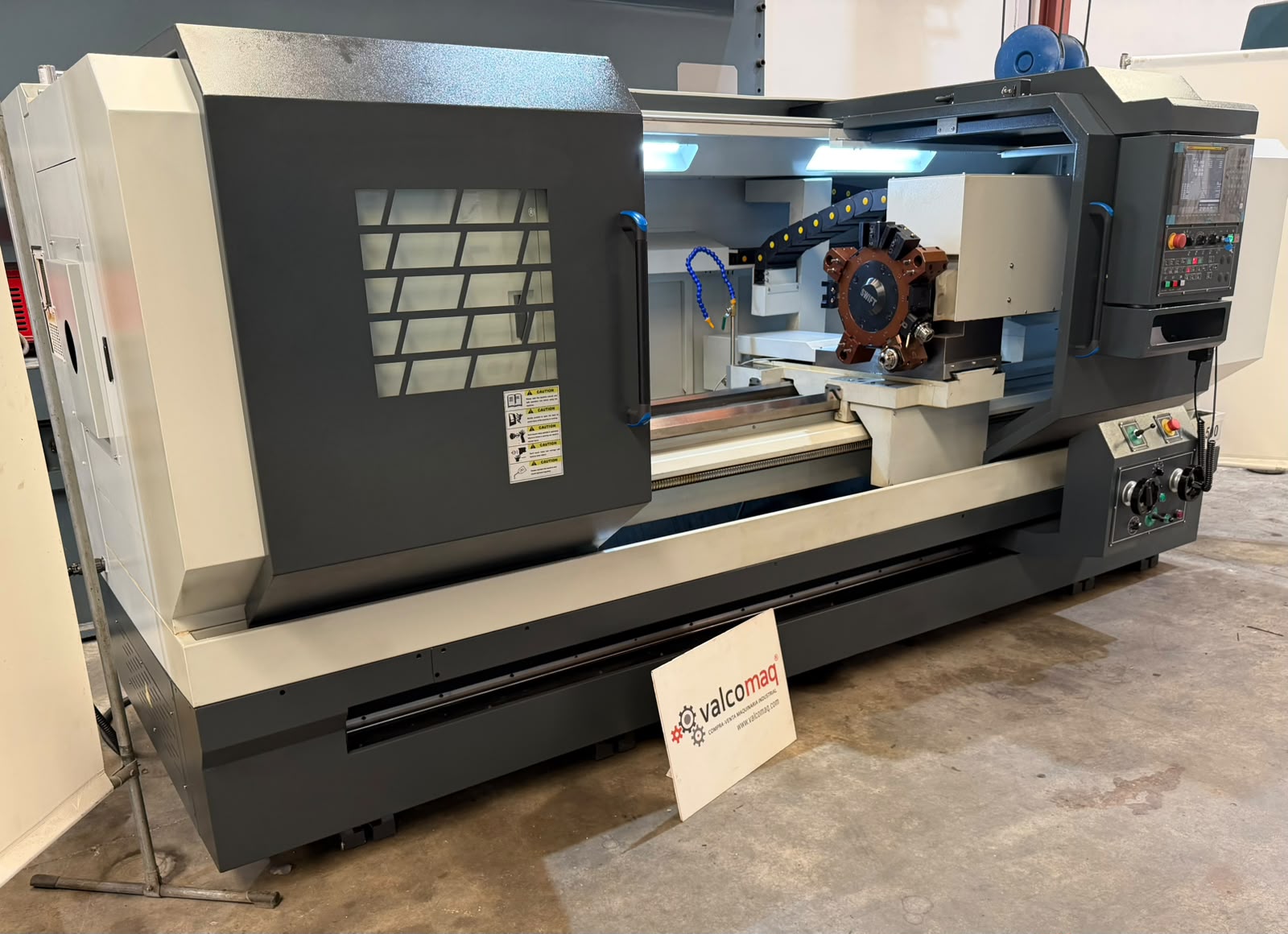

Main features
Manufacturer: CK6166
Model: CK6166 x 2000 mm

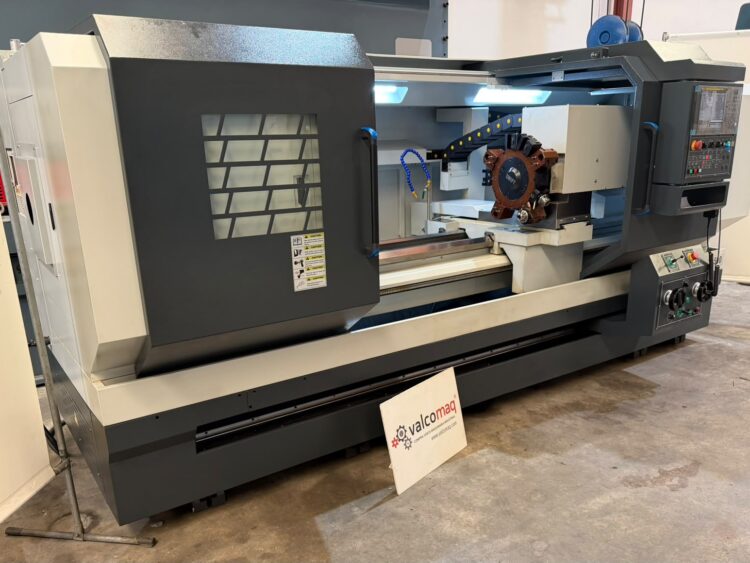

Machine type: CNC lathe with live tooling
Working capacities:
- Distance between centres: 2000 mm
- Maximum swing over bed: 660 mm
- Maximum swing over cross slide: 400 mm
- Minimum bed width: 460 mm

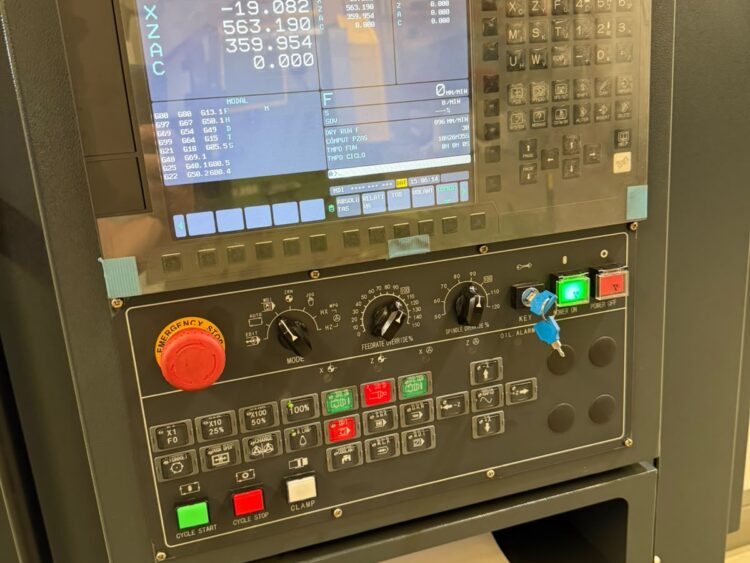

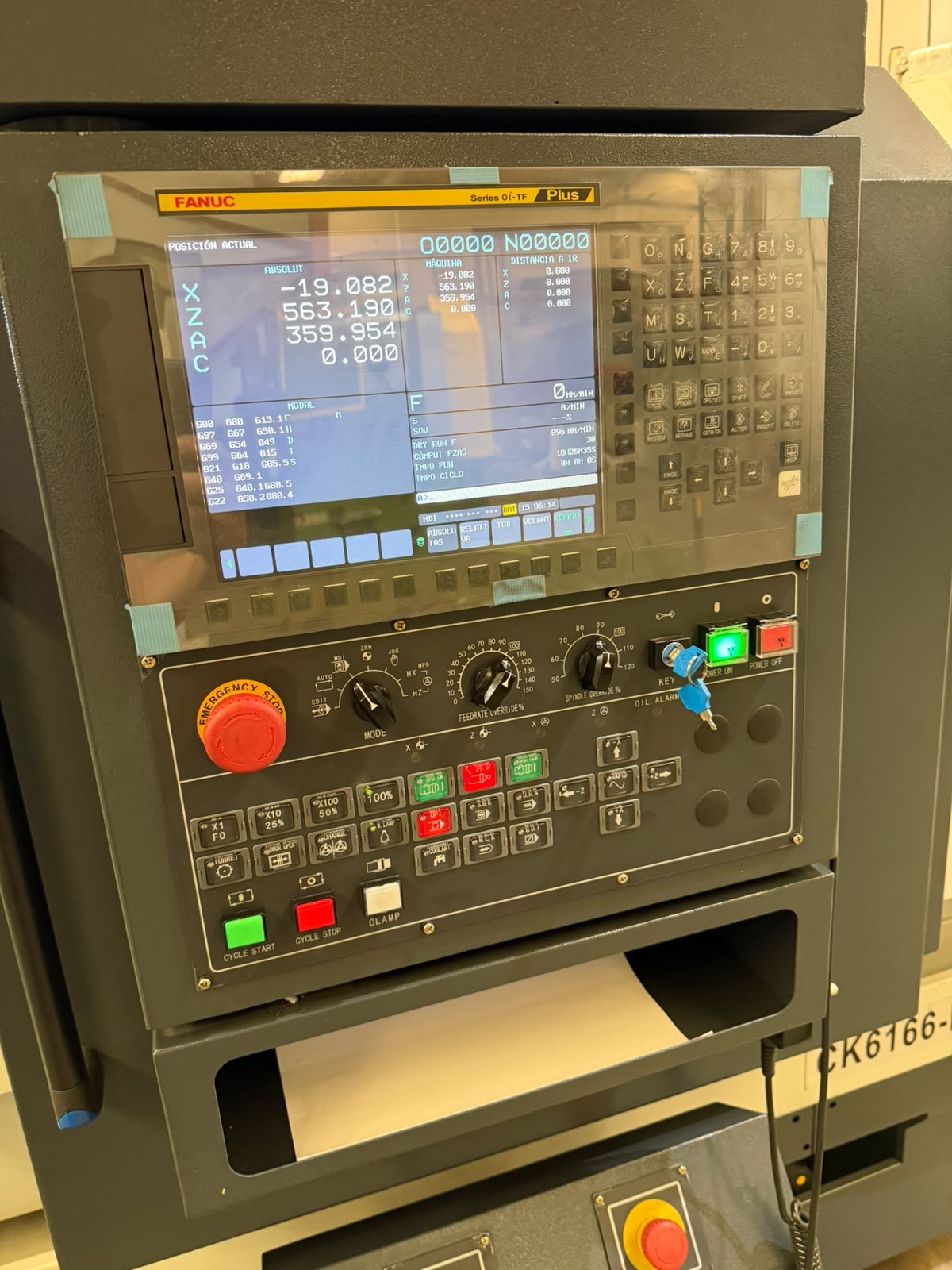

CNC control:
- Control system: Fanuc Oi TF+
- Screen: 10.4 inches
- Manual: Programming manual included
Main spindle:
- Spindle servo motor: Fanuc, 11 kW
- Speed range: 150–1200 rpm
- Spindle nose: A2-11
- Spindle bore diameter: 105 mm
- Specified through-hole diameter: 90 mm

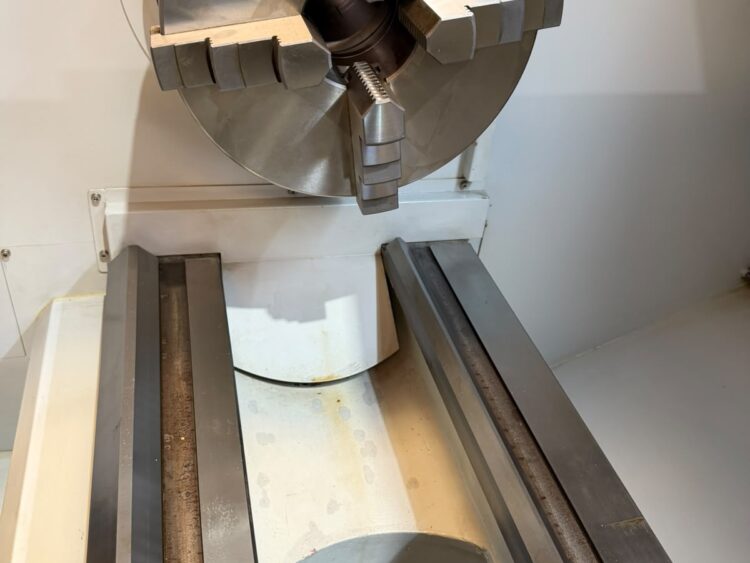

- Chuck: 12-inch manual four-jaw chuck
Axes and feeds:
- C-axis: With hydraulic brake
- X-axis travel: 380 mm
- Z-axis travel: 2000 mm
- X-axis rapid traverse: 4 m/min
- Z-axis rapid traverse: 6 m/min

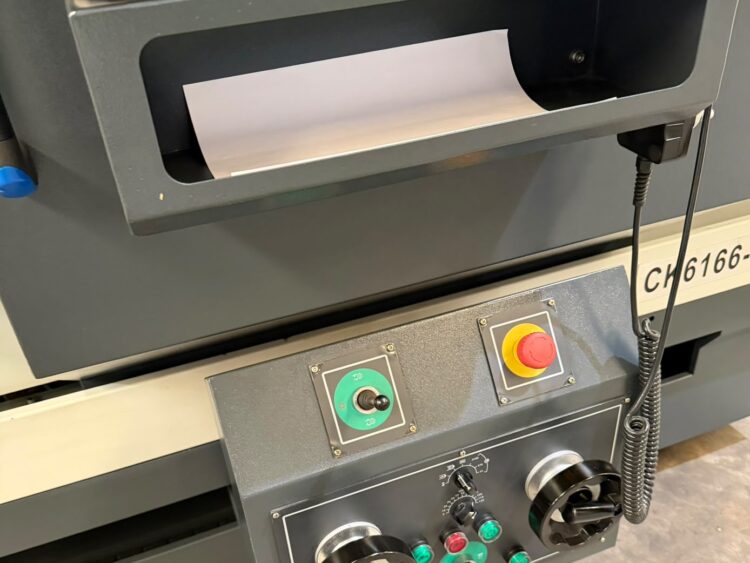

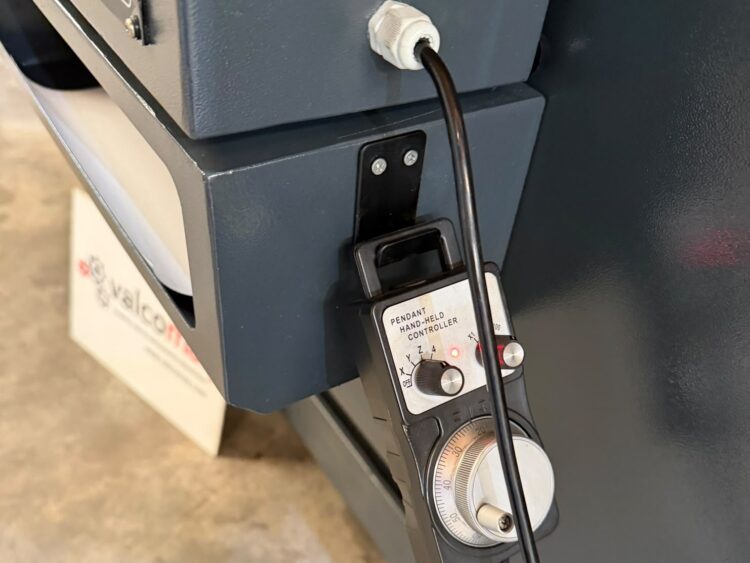

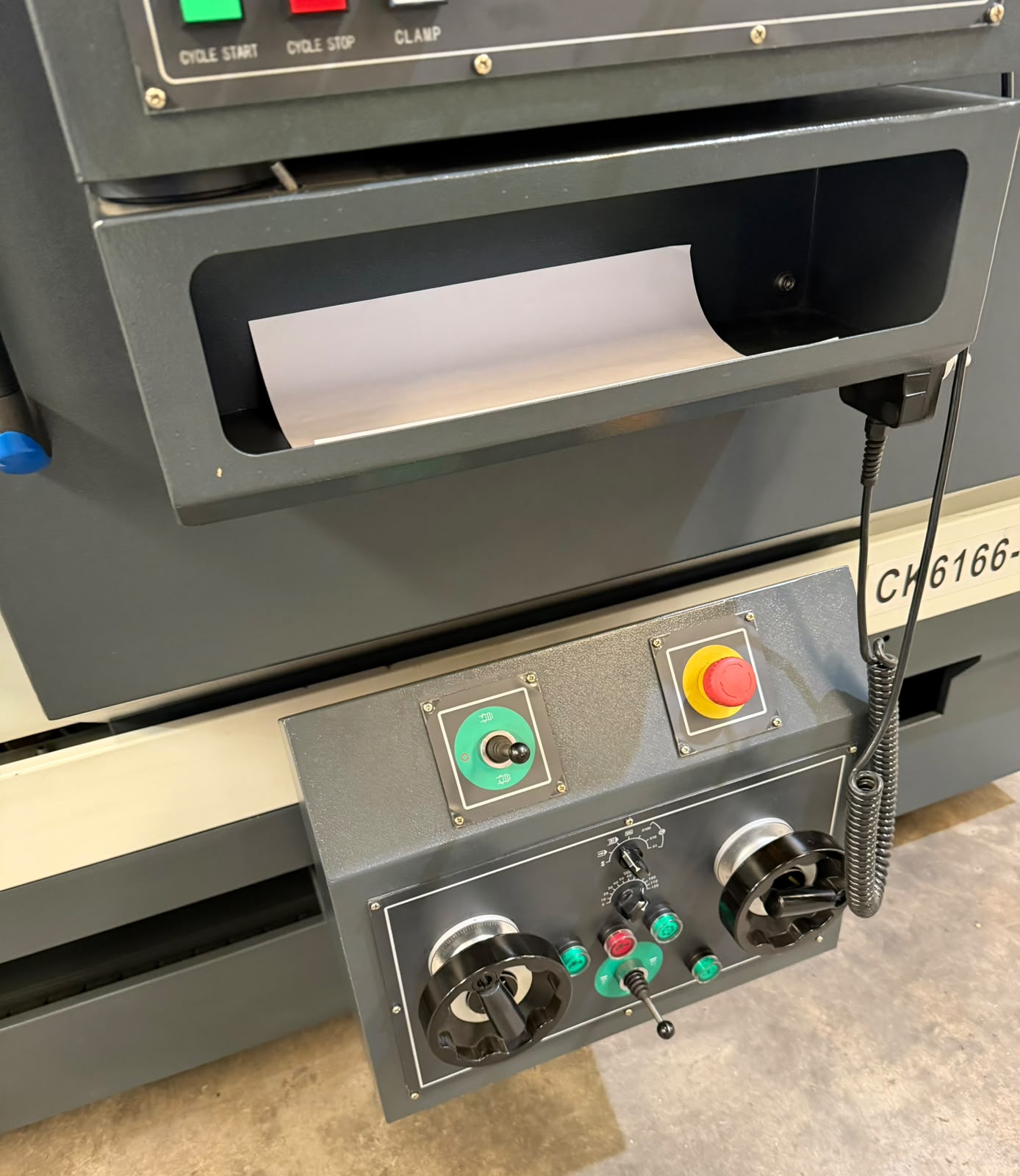

- Manual operation: Handwheels for X and Z axes
Live tooling turret:
- Brand: Swift
- Capacity: 12 tools
- Tool system: BMT45
- Collets: ER25
- Live tooling motor power: 1.8 kW
- Stated minimum speed: 4000 rpm
- Turret position: Rear
- Turret servo motor: Fanuc
- Included live tool holders: 1 x 0° and 1 x 90°
- Standard tool holders: 6 units

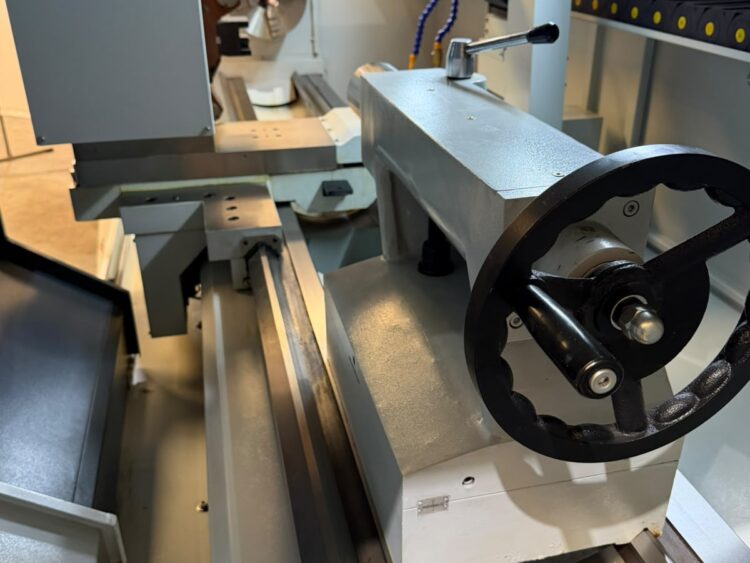

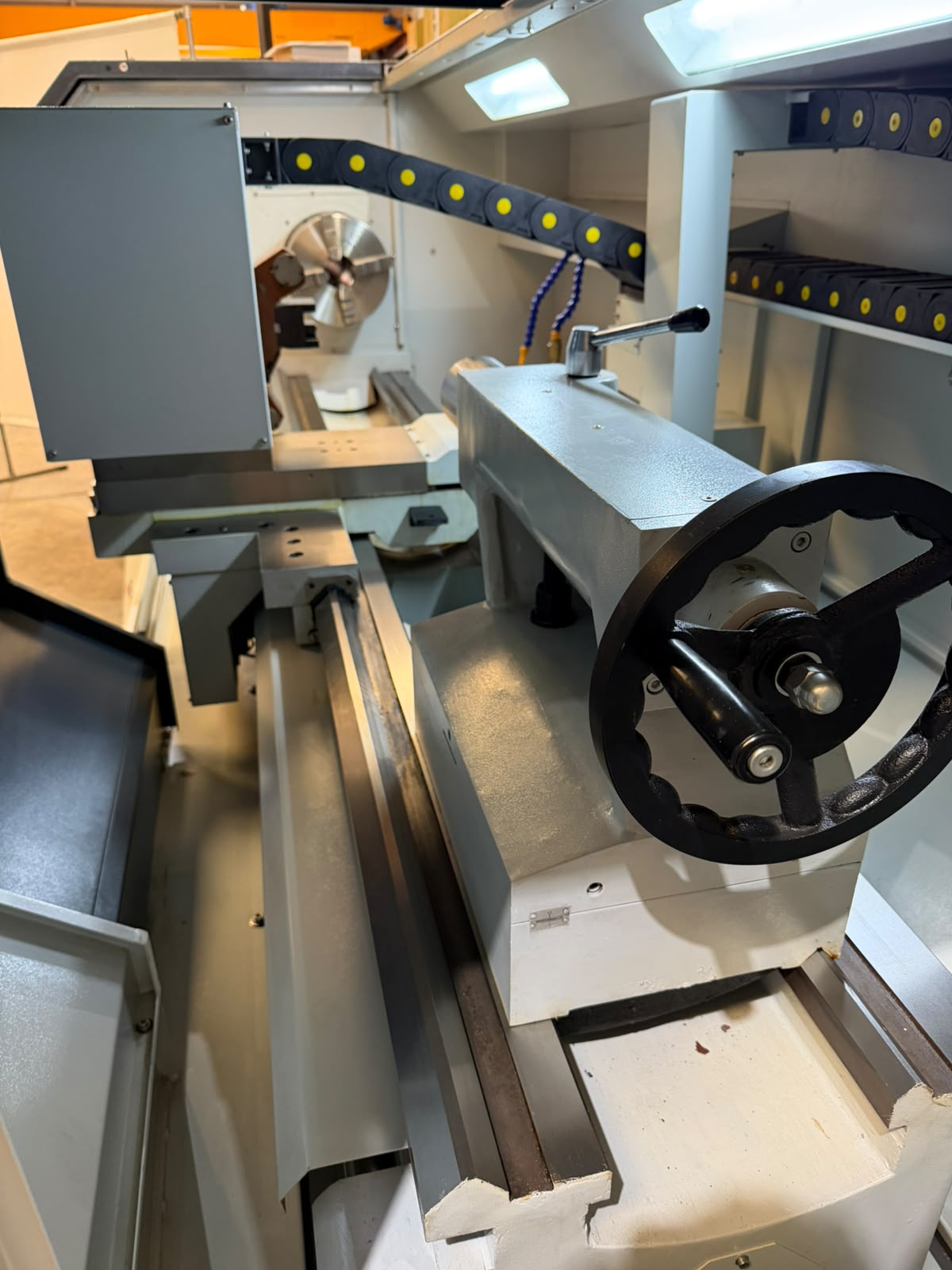

Tailstock:
- Operation: Manual
- Quill diameter: 100 mm
- Quill travel: 235 mm
- Quill taper: Morse 5 (MT5)
Accessories and safety:
- Steady rest and follow rest with bronze contacts
- Full enclosure
- Safety door interlocks
- CE compliance stated by the manufacturer
- Standard accessories included
- Export packaging
