Main features
-

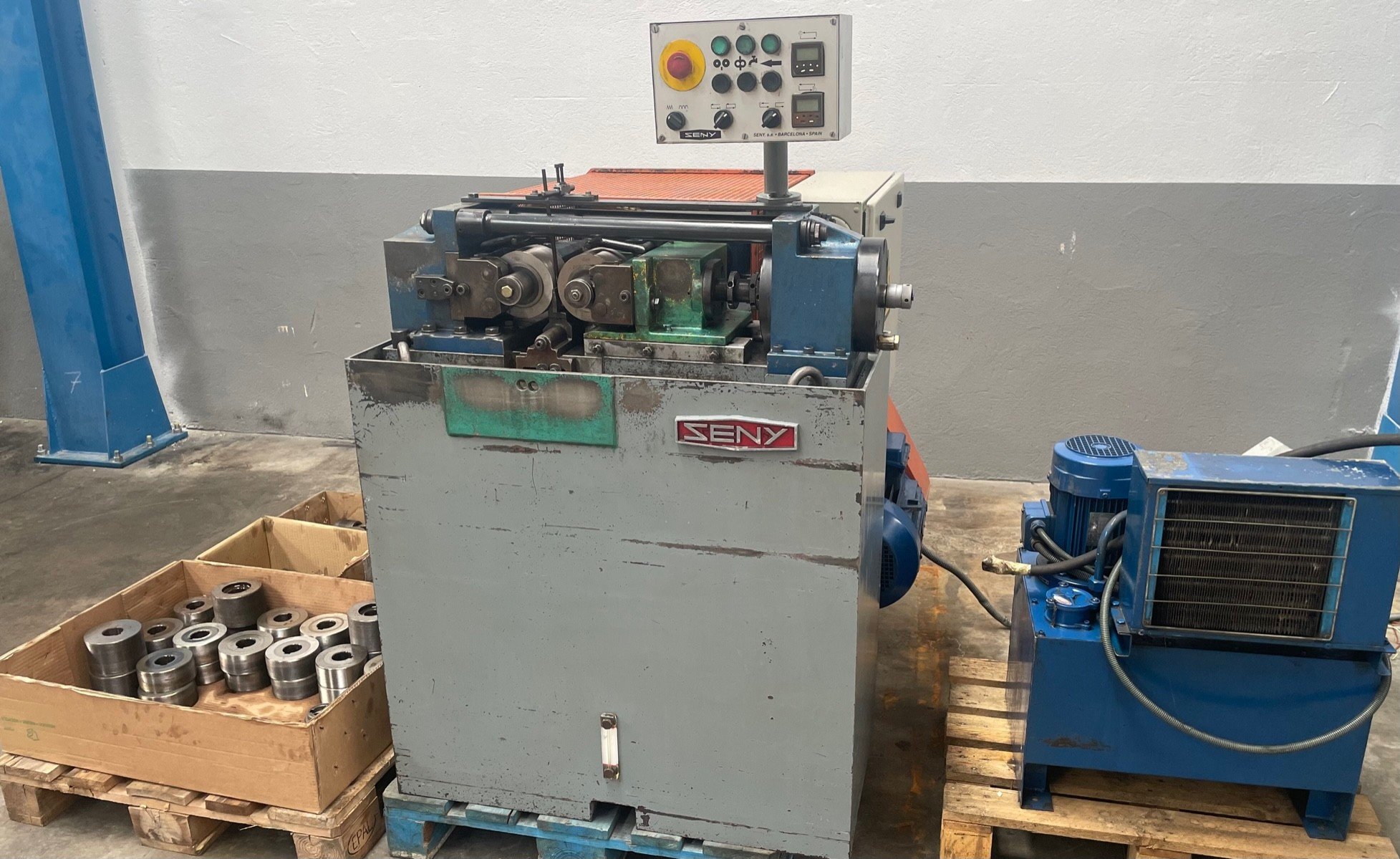

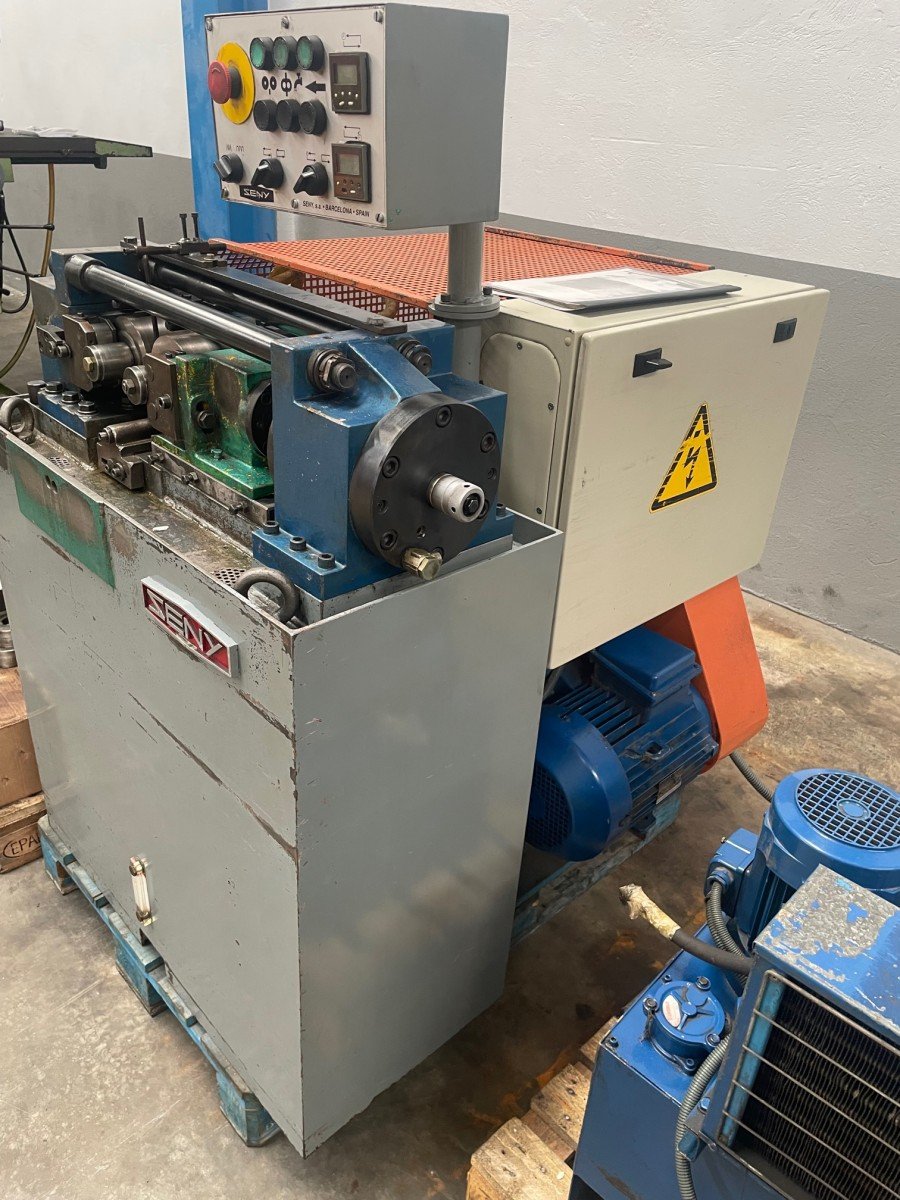

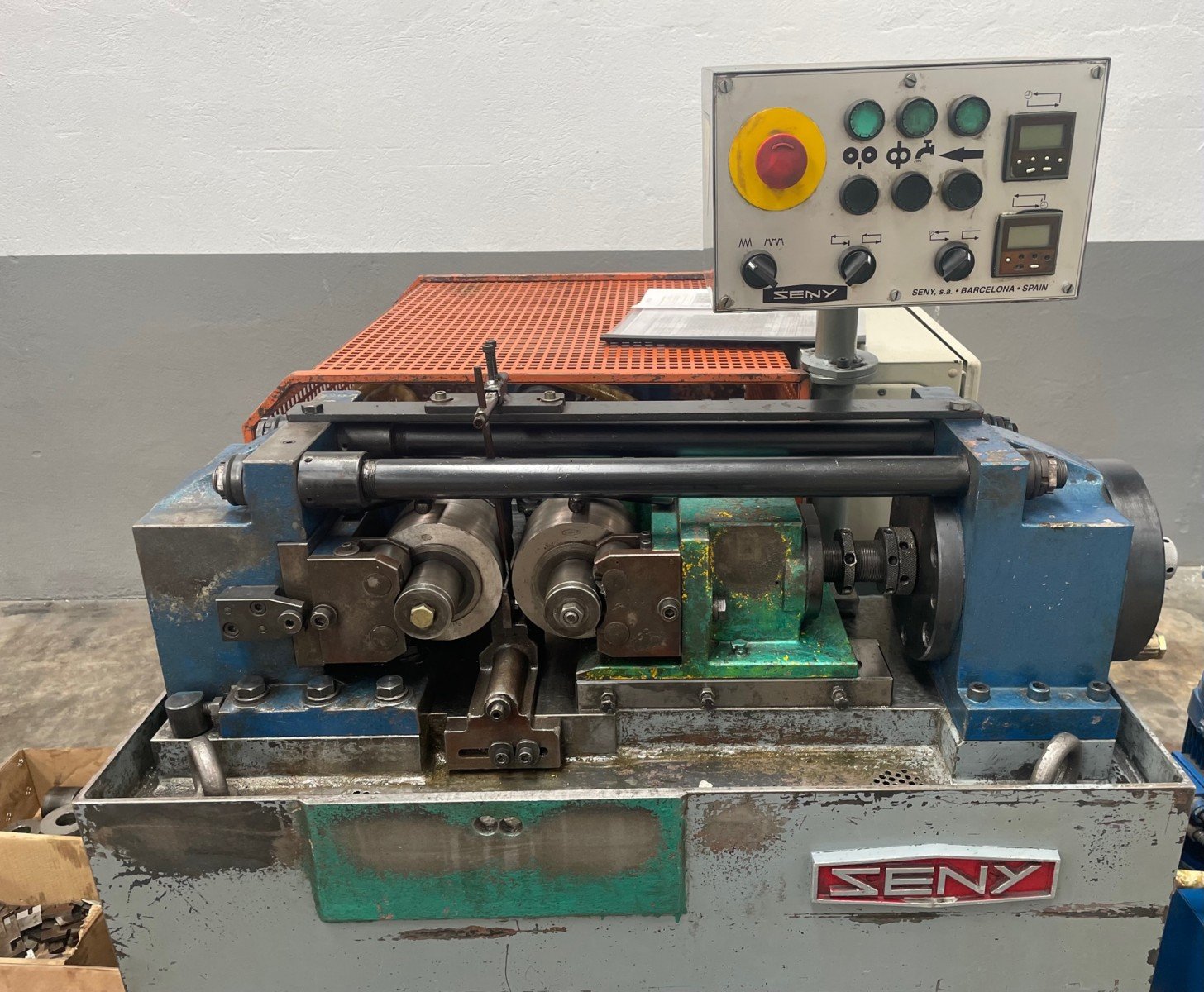

Seny D-44 EH hydraulic thread rolling machine, equipped with two rolls and full hydraulic drive.
-

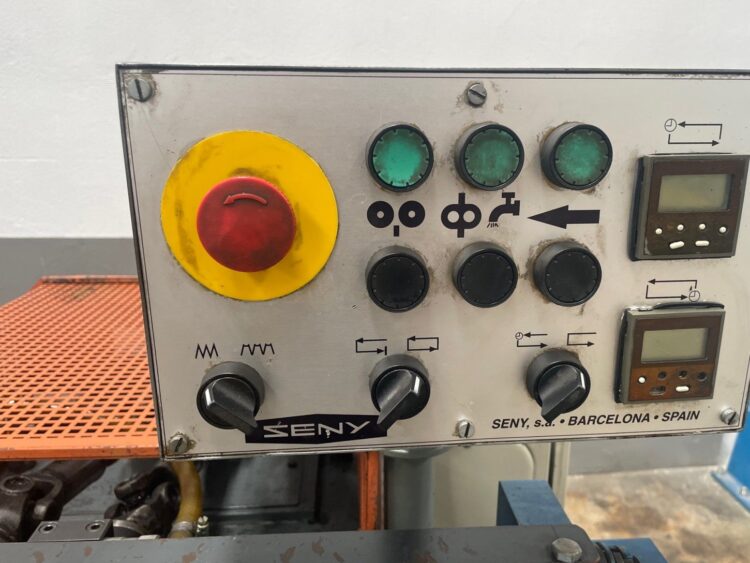

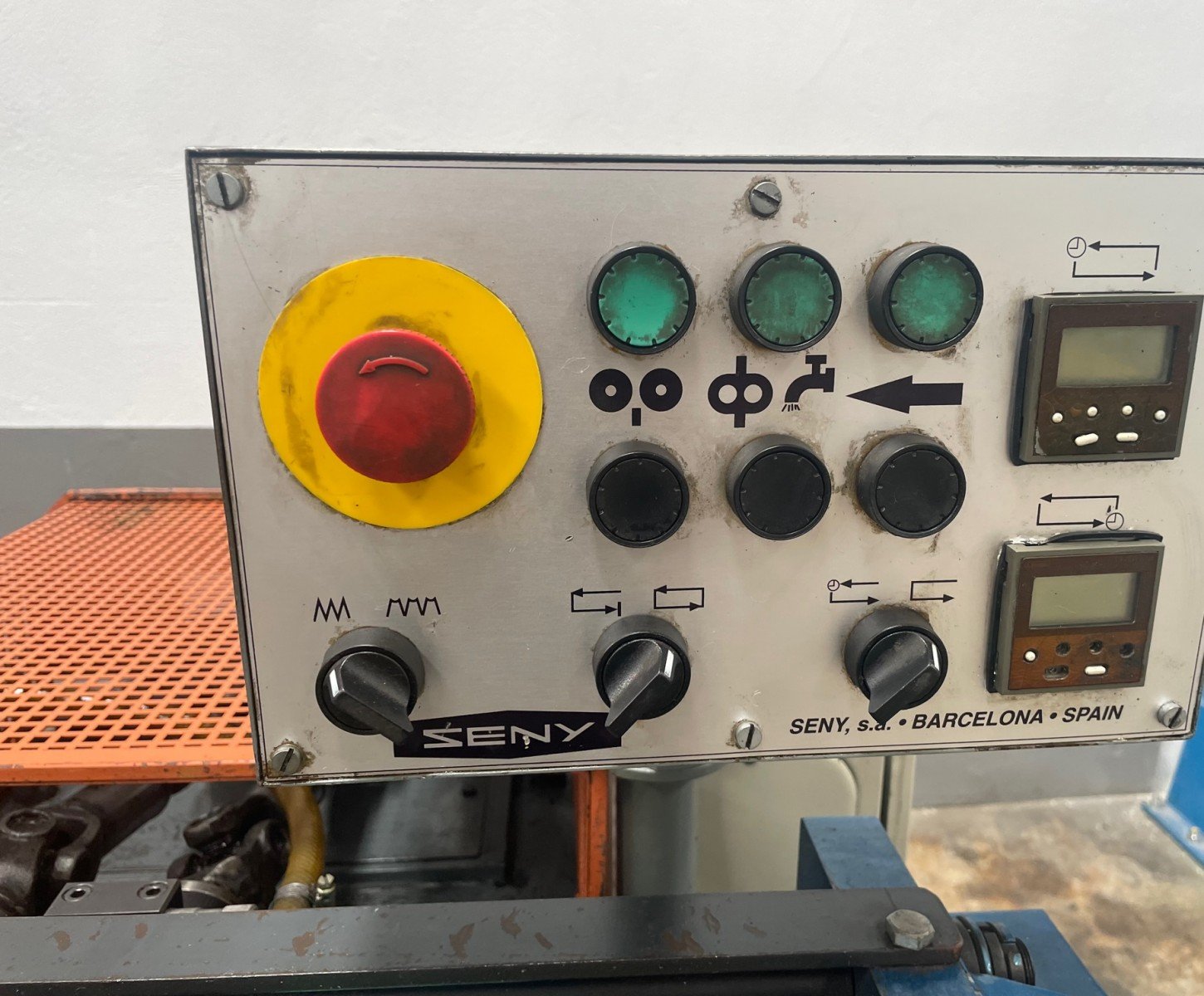

Manual and automatic cycles, suitable for different production setups.
-
Adjustable roll speed, ideal for various thread types and materials.
-

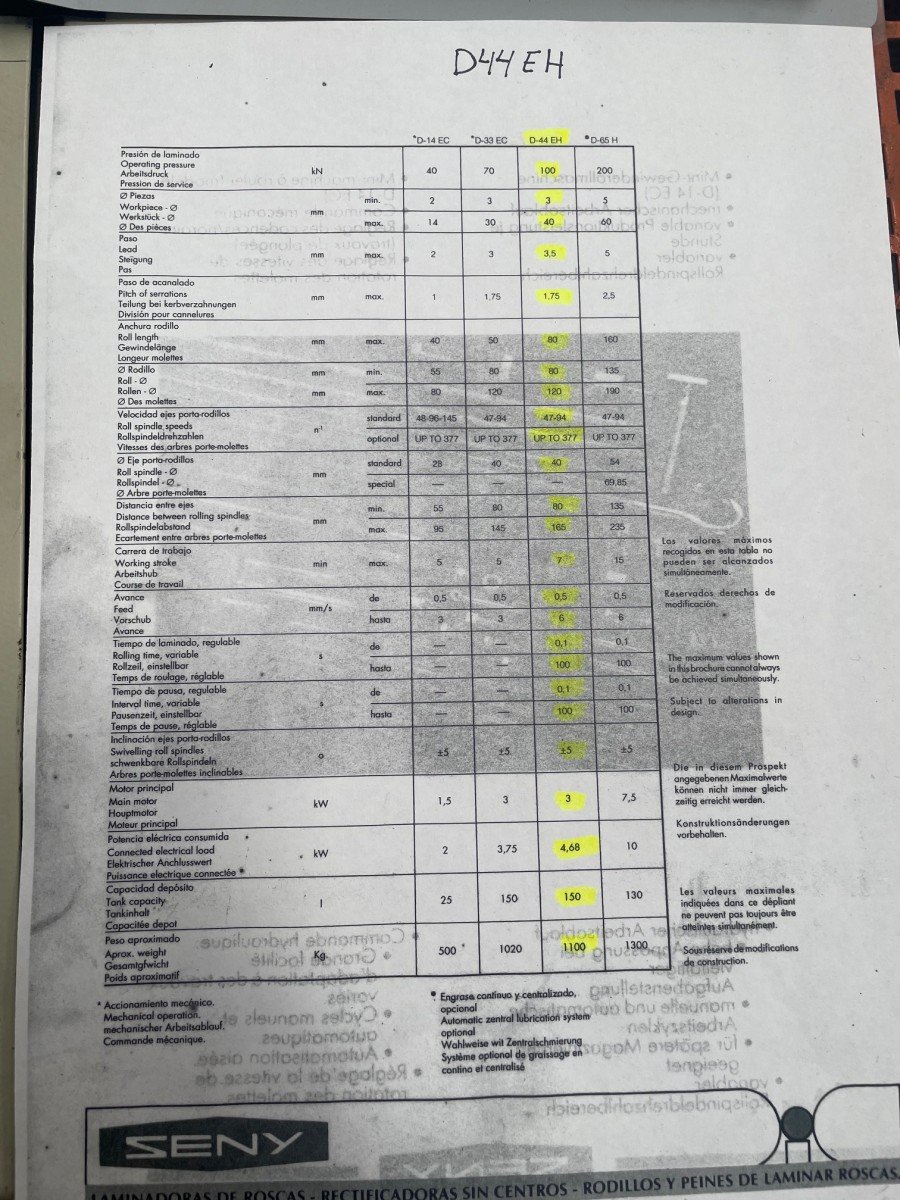

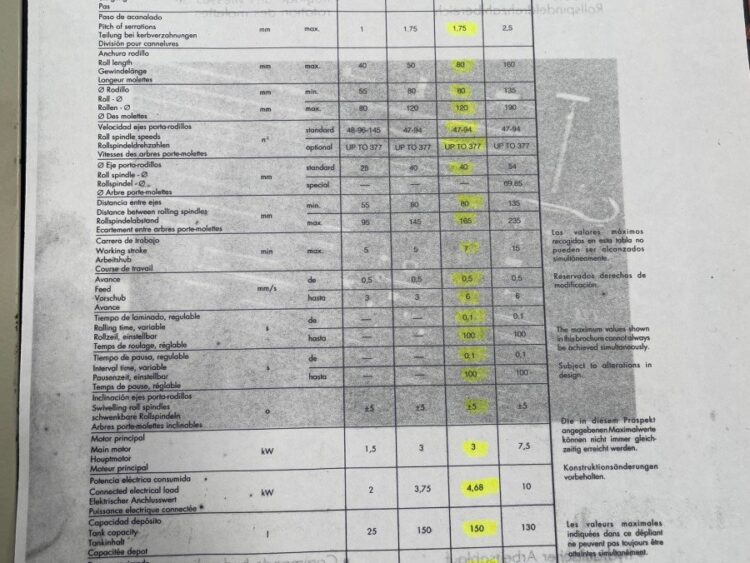

Maximum threading diameter: 40 mm, minimum 3 mm.
-
Maximum thread pitch: 3.5 mm and maximum knurling pitch: 1.75 mm.
-

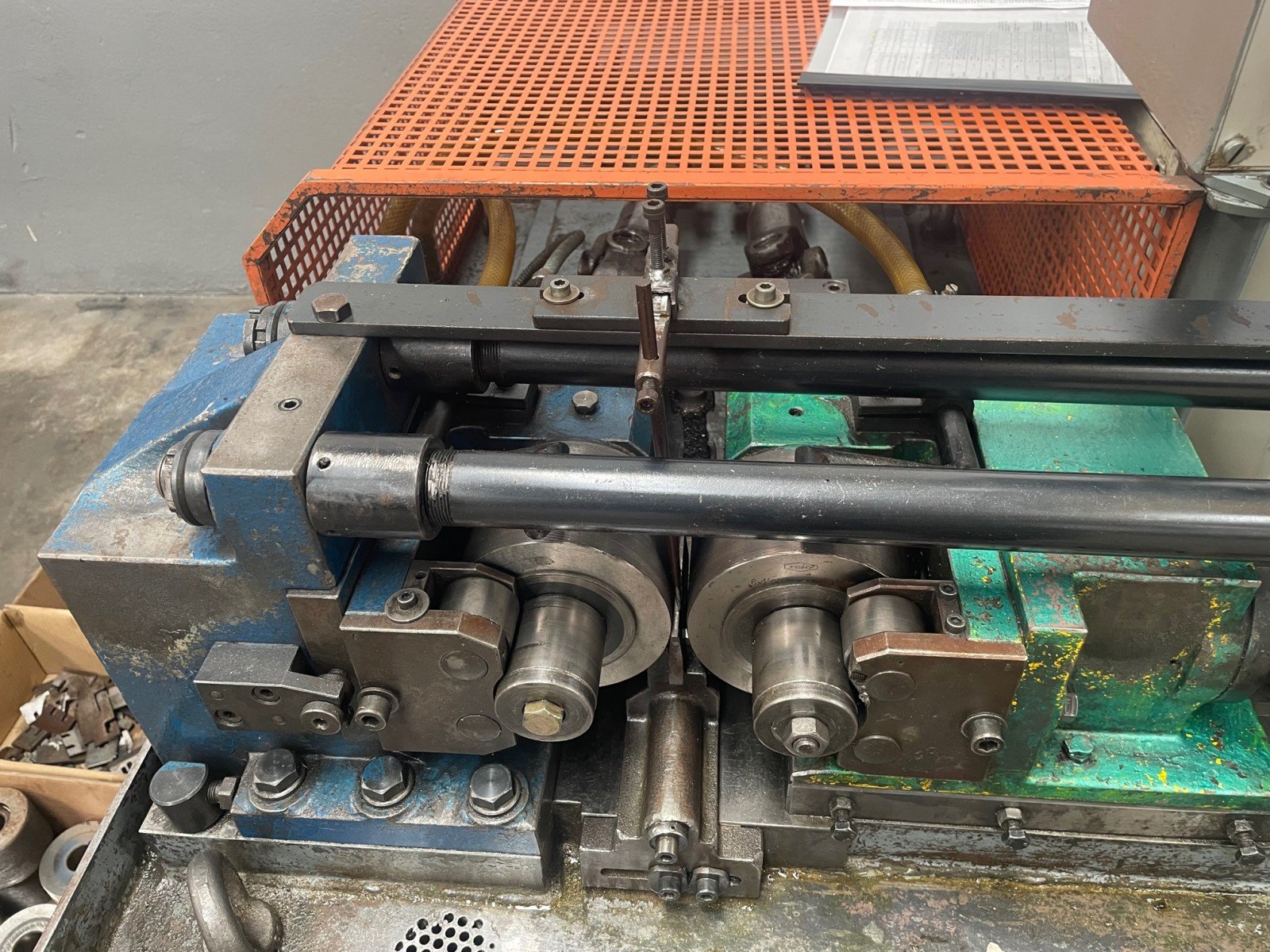

Maximum roll width: 80 mm and roll diameter range: 80–120 mm.
-

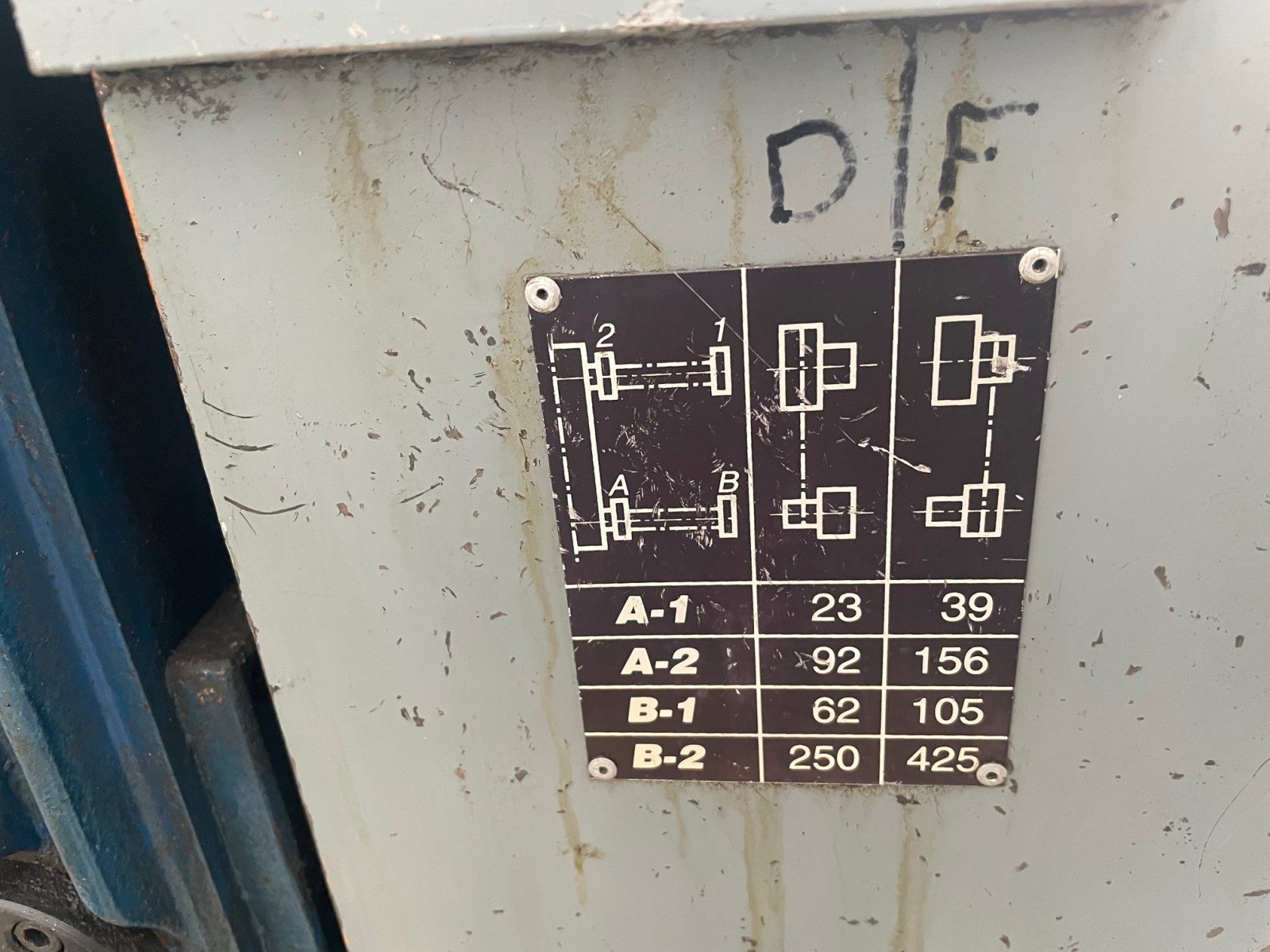

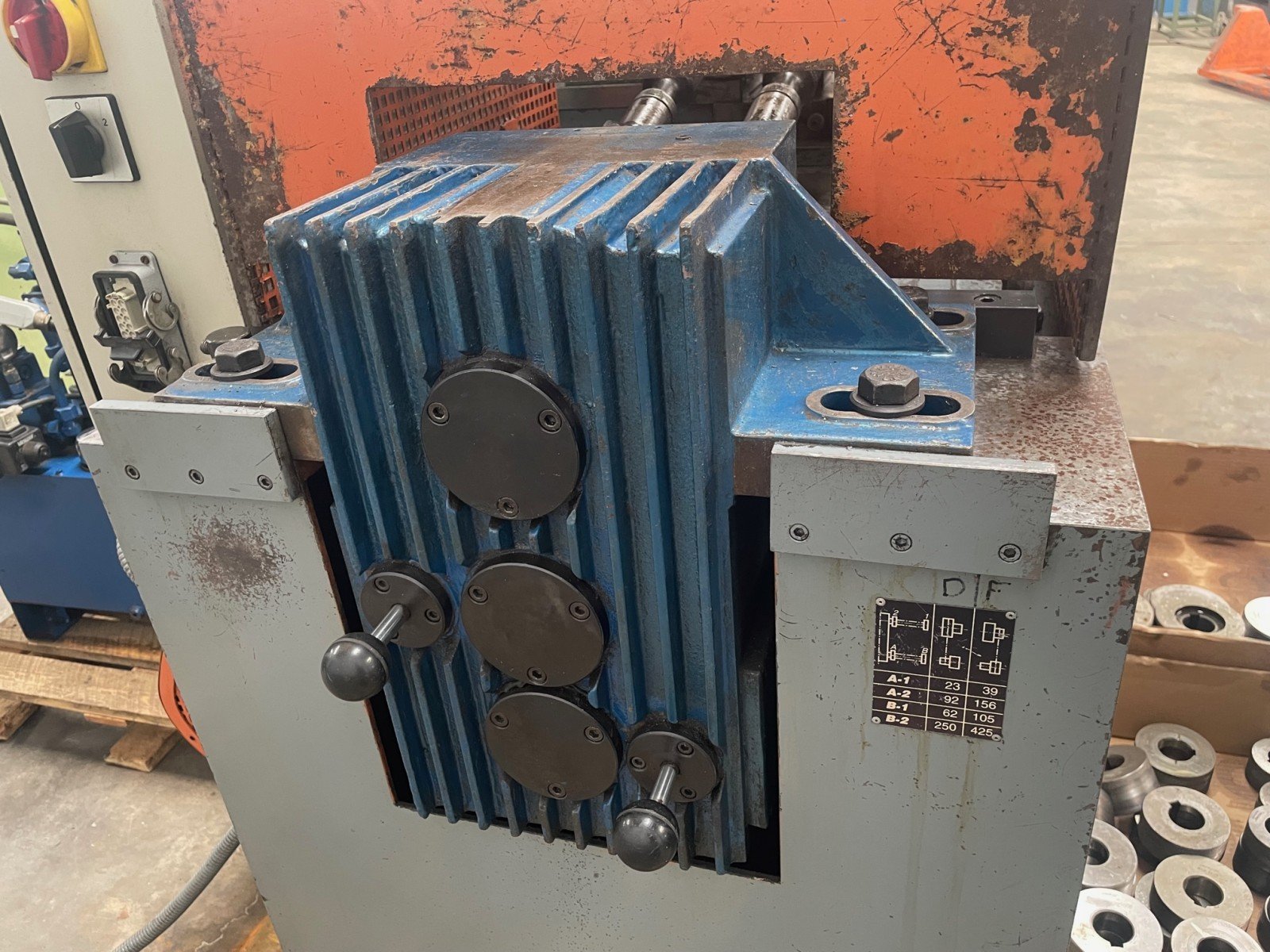

Shaft carrier speed: 47–94 rpm, adjustable to the operation.
-
Roll-holder shaft diameter: 40 mm.
-
Distance between shafts: 80–165 mm, adjustable to tooling and workpiece.
-
Working stroke: up to 7 mm.
-
Feed rates: 0.5 to 6 mm/s, allowing precise control.
-
Rolling time adjustable from 0.1 to 100 seconds.
-
Roll-holder shaft inclination: ±5º, useful for special profiles.
-

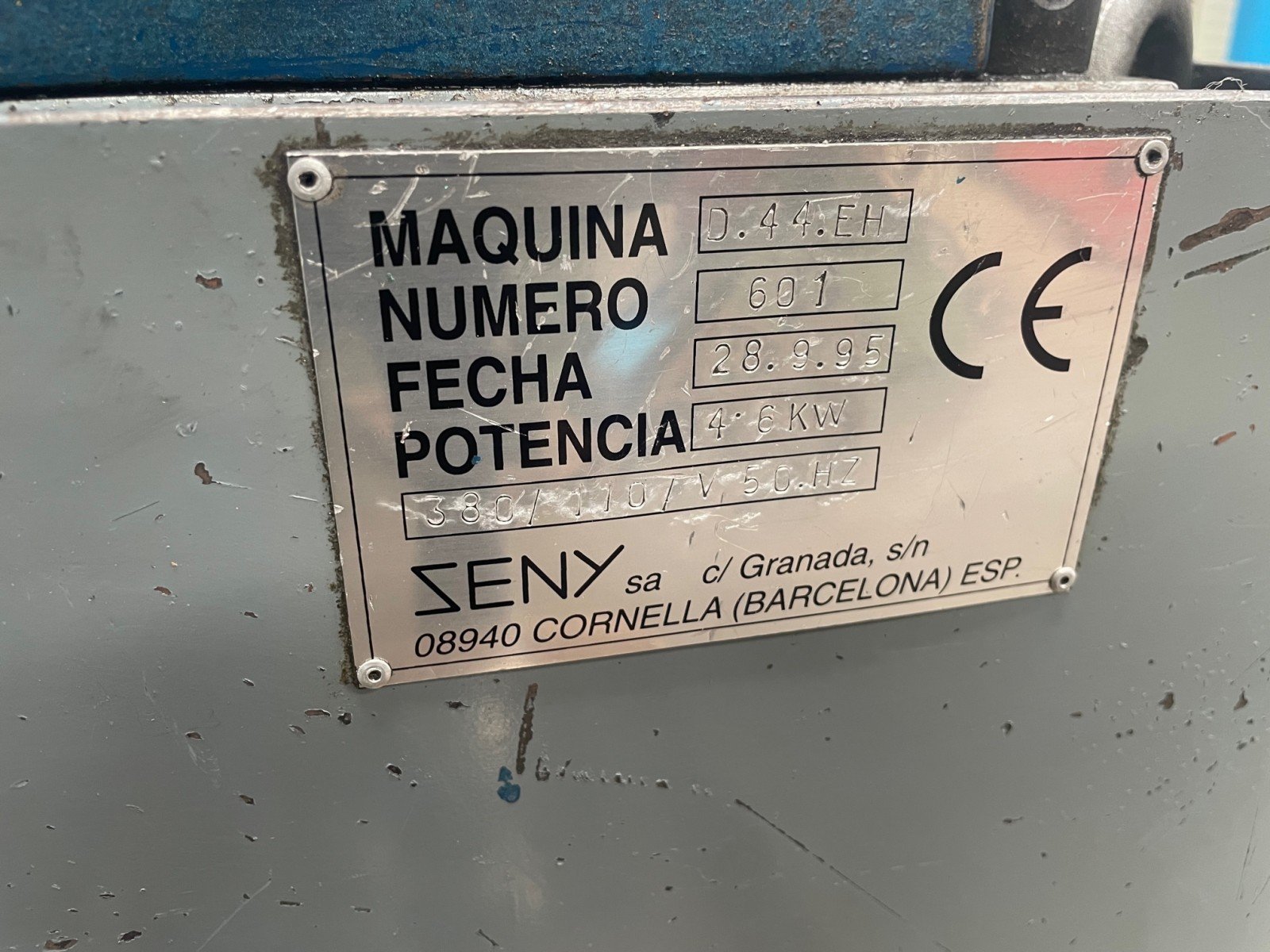

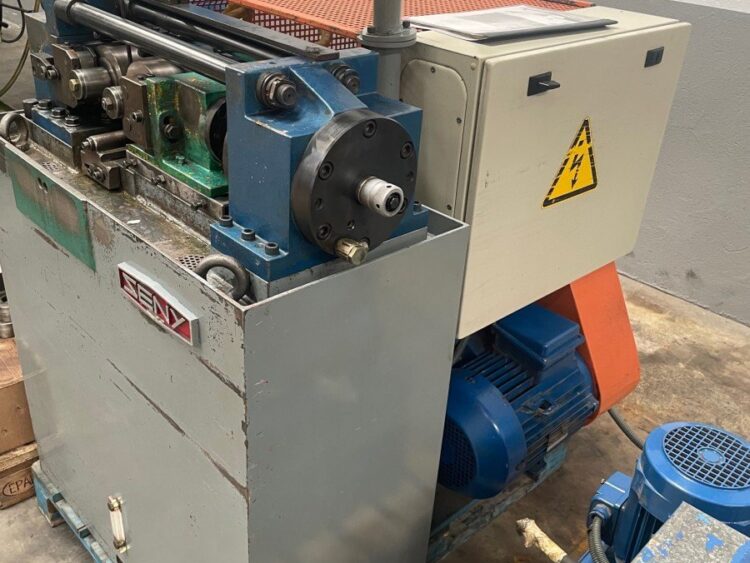

Main motor power: 3 kW, total installed power: 4.68 kW.
-
150 L oil tank and approx. weight: 1100 kg.
-

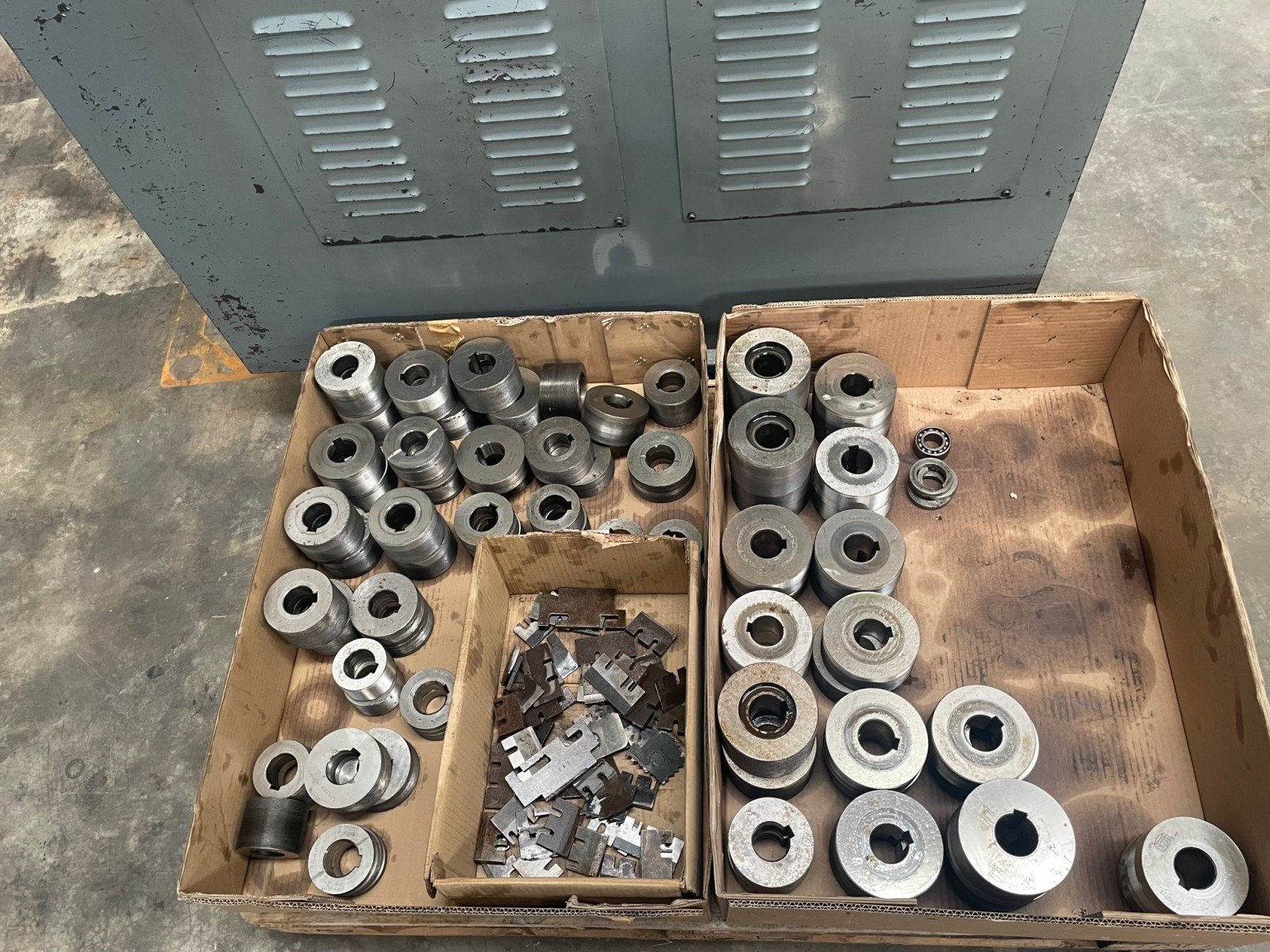

Supplied with various rolls.
-
Machine in good general condition.
