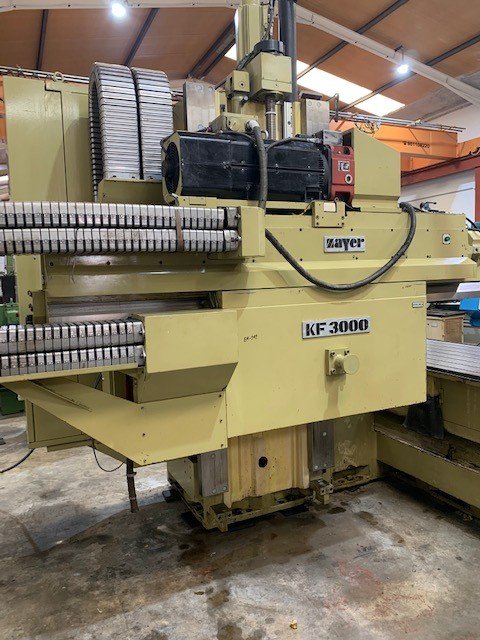

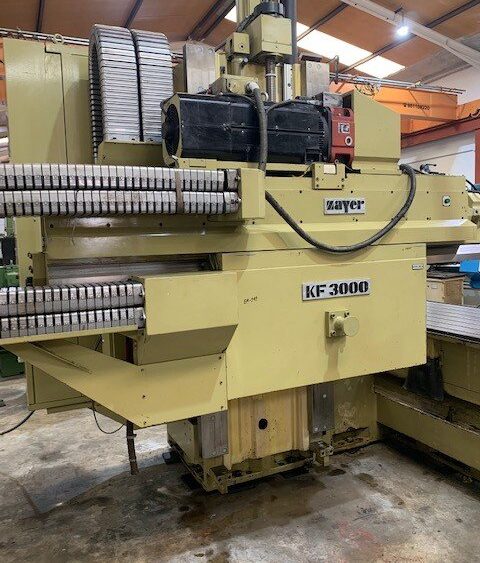

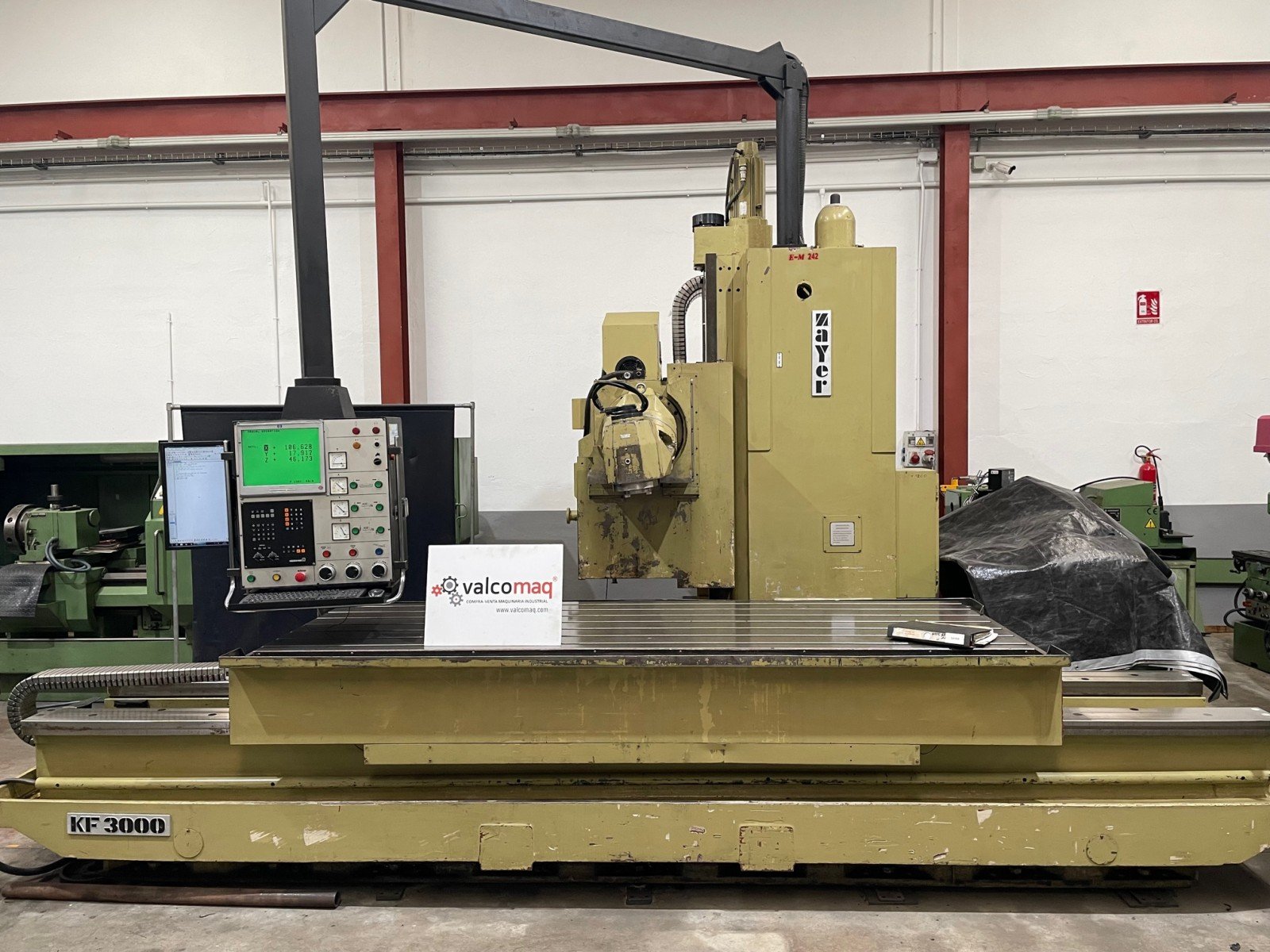

Zayer KF 3000 fixed-bed milling machine, Heidenhain 355 CNC, Huron ISO 50 head, full restoration and new bearings.

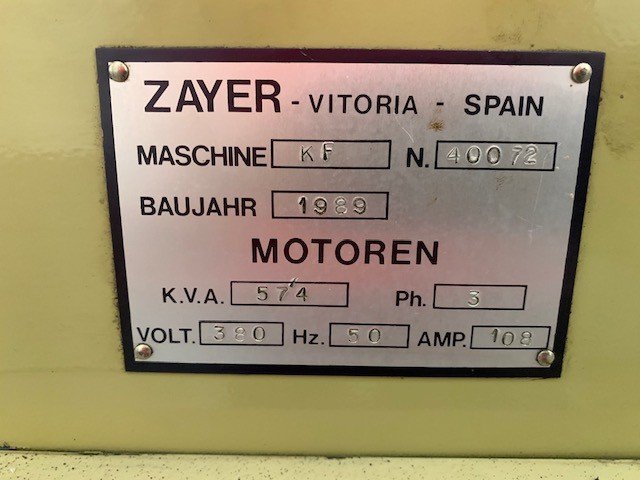

Manufacturer: Zayer
Model: KF 3000

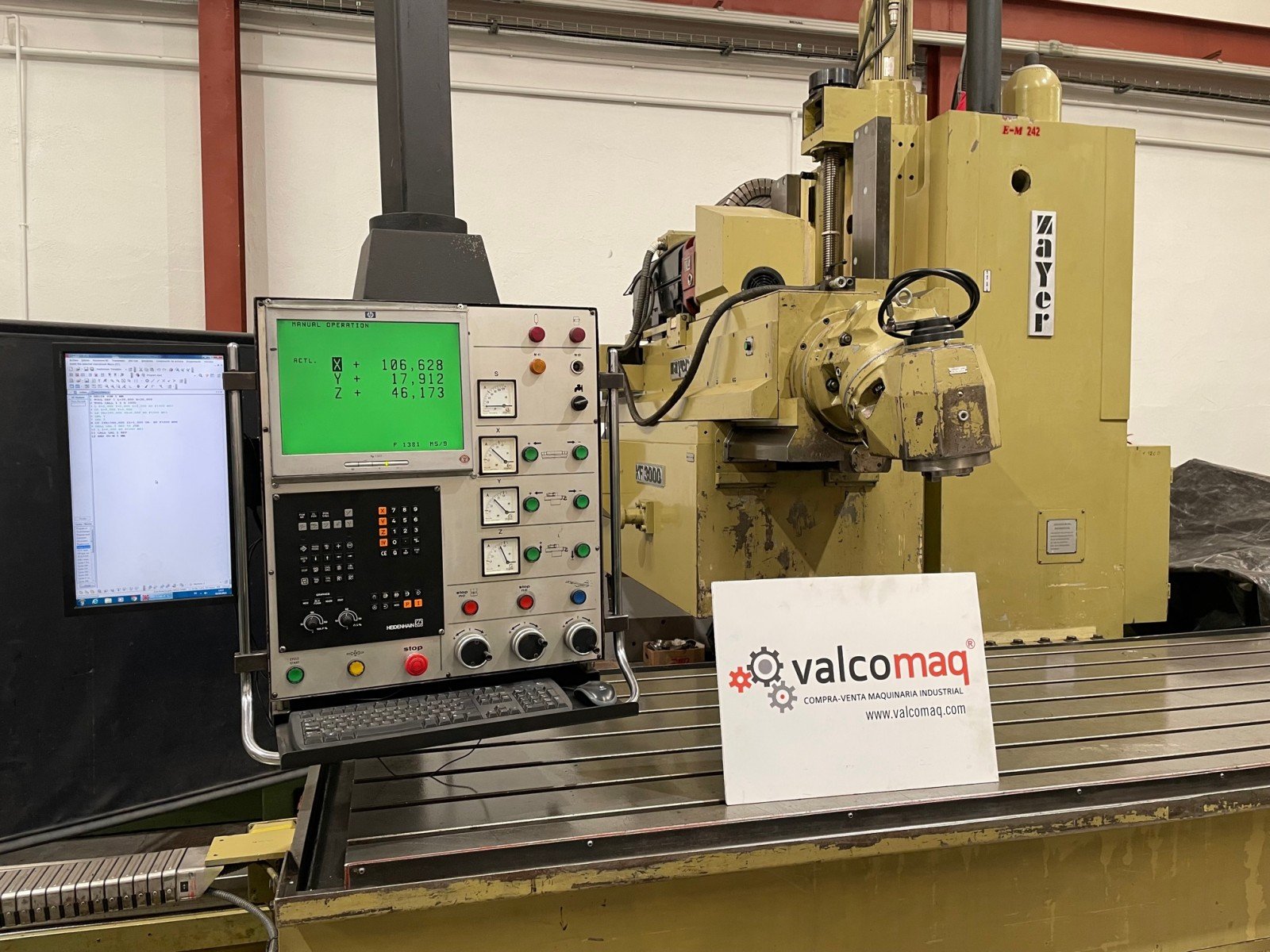

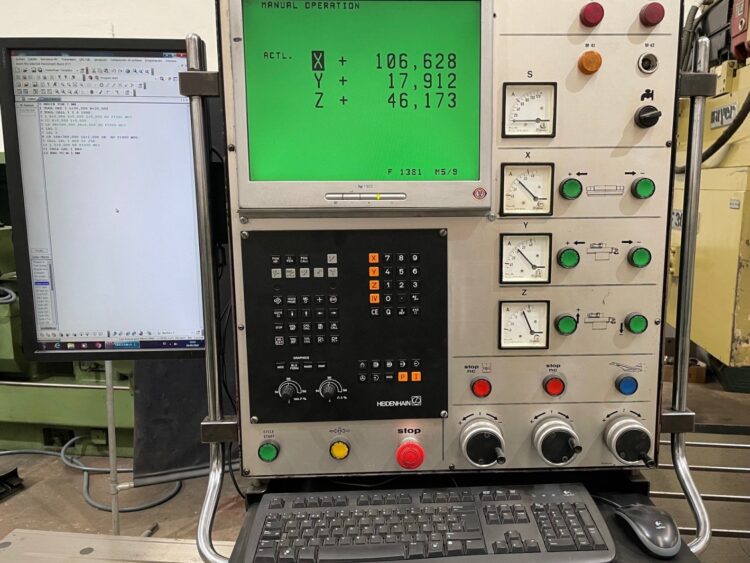

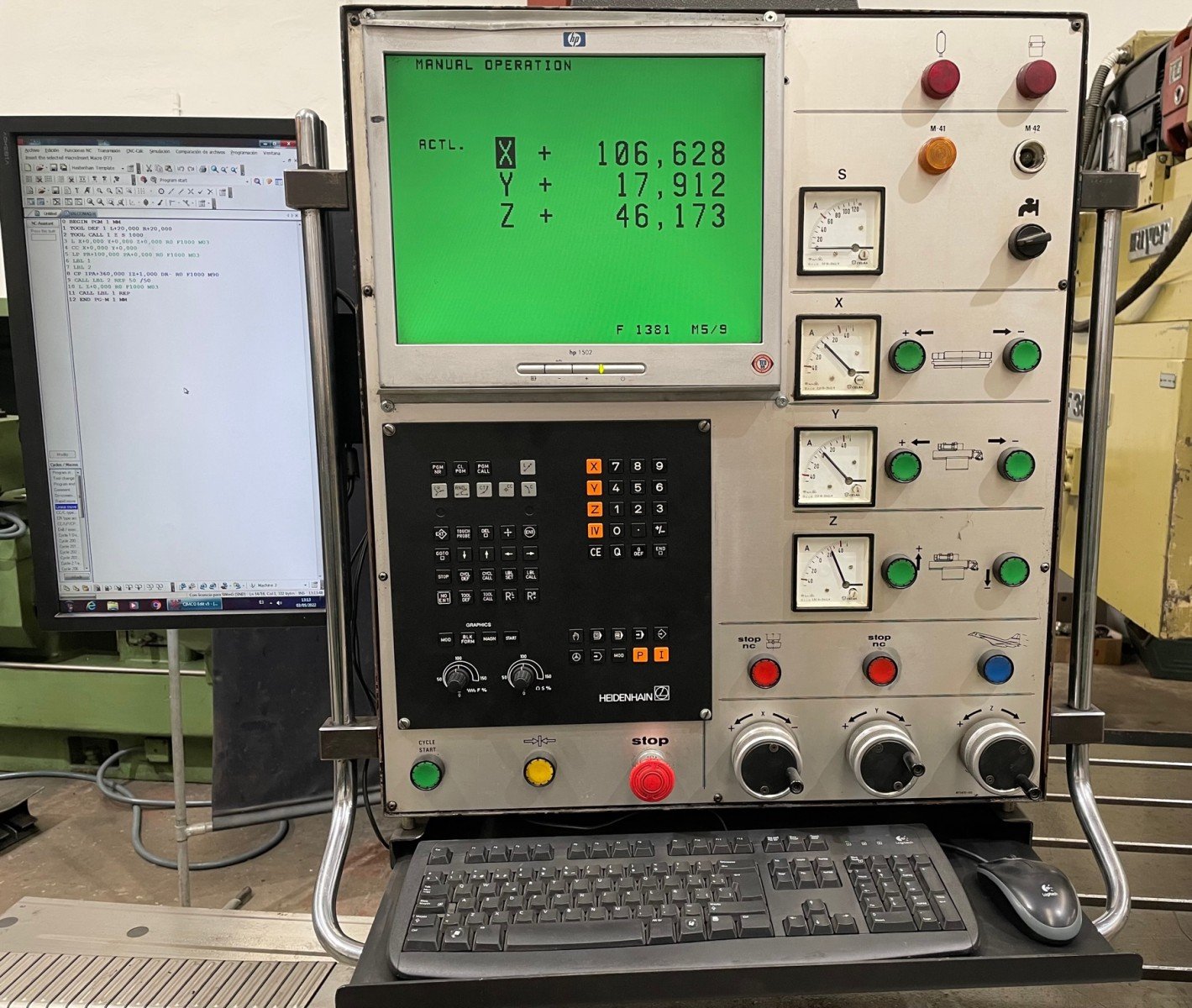

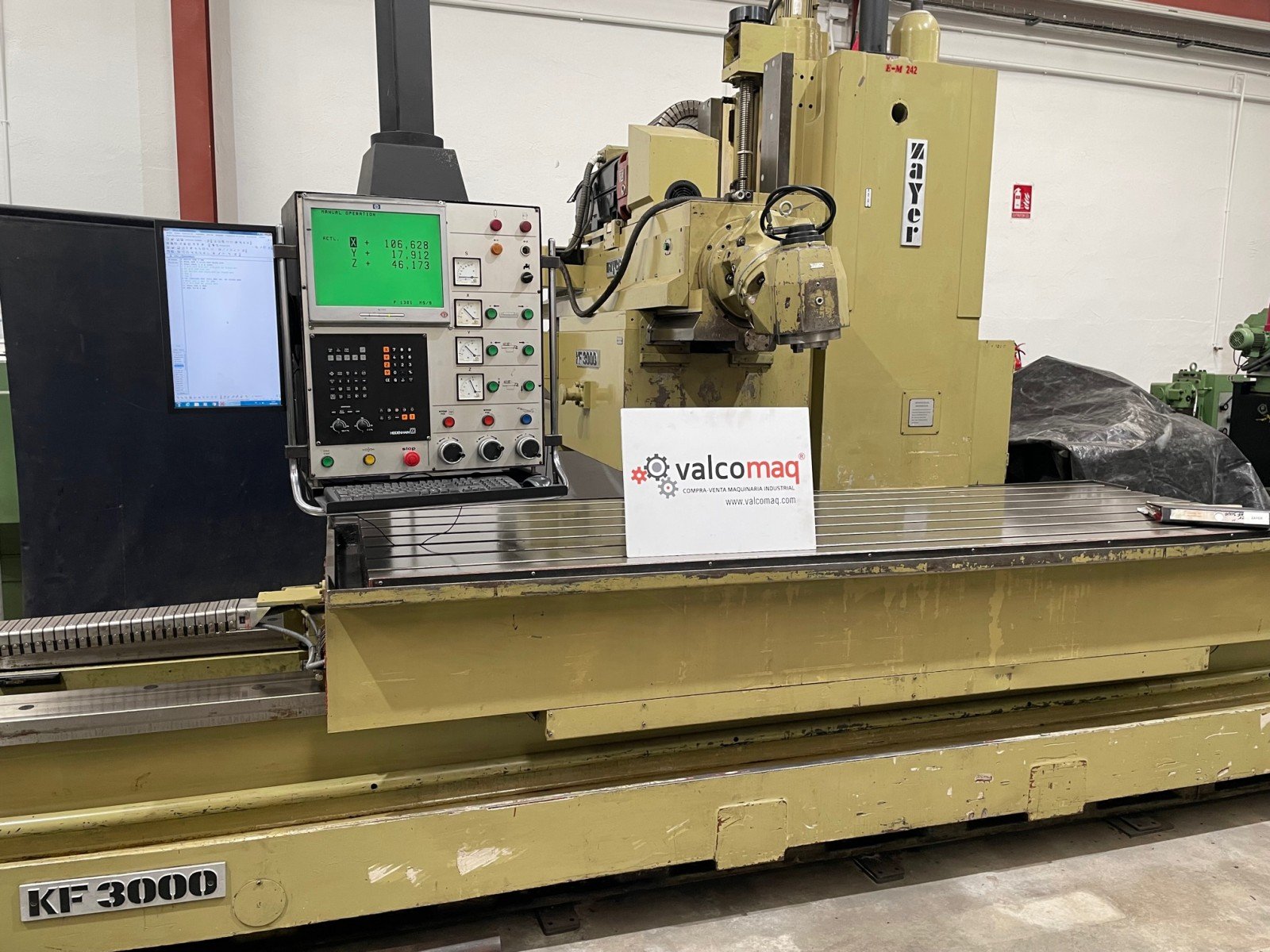

Control: Heidenhain 355 CNC

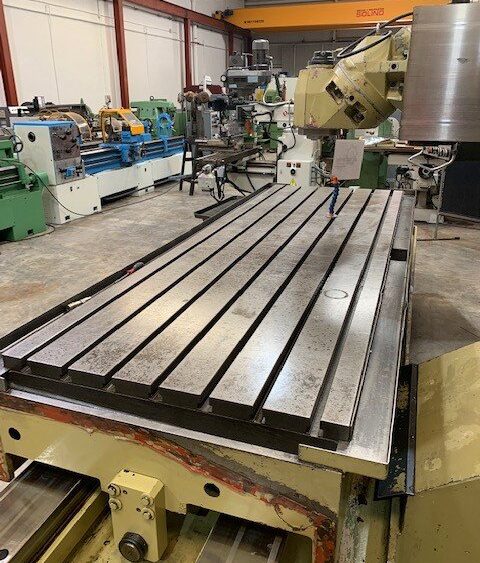

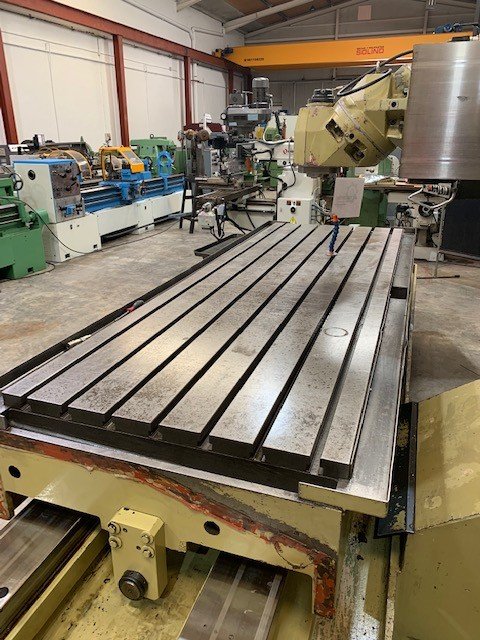

Table:
• 3000 × 1000 mm, 10,000 kg load
Travels:
• X: 2700 mm • Y: 1250 mm • Z: 1000 mm

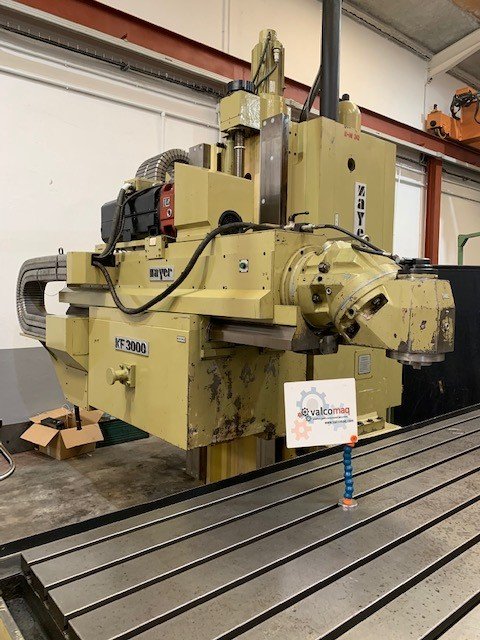

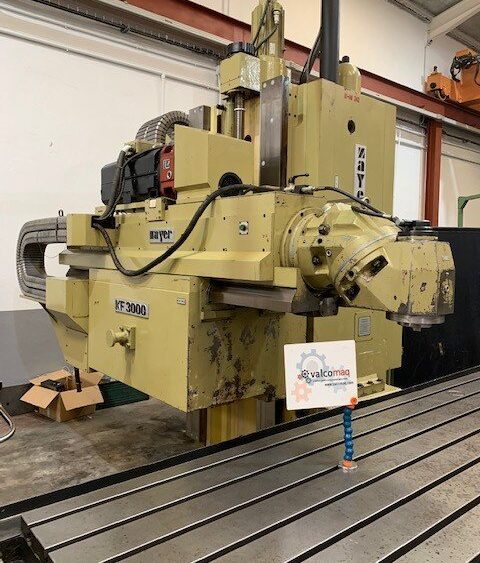

Head:
• Huron ISO 50
• Variable 3-range speeds up to 3000 rpm
Feeds:
• Rapids: 15,000 mm/min
Power: 30 kW
Weight: 25 tons
Condition: Good overall
