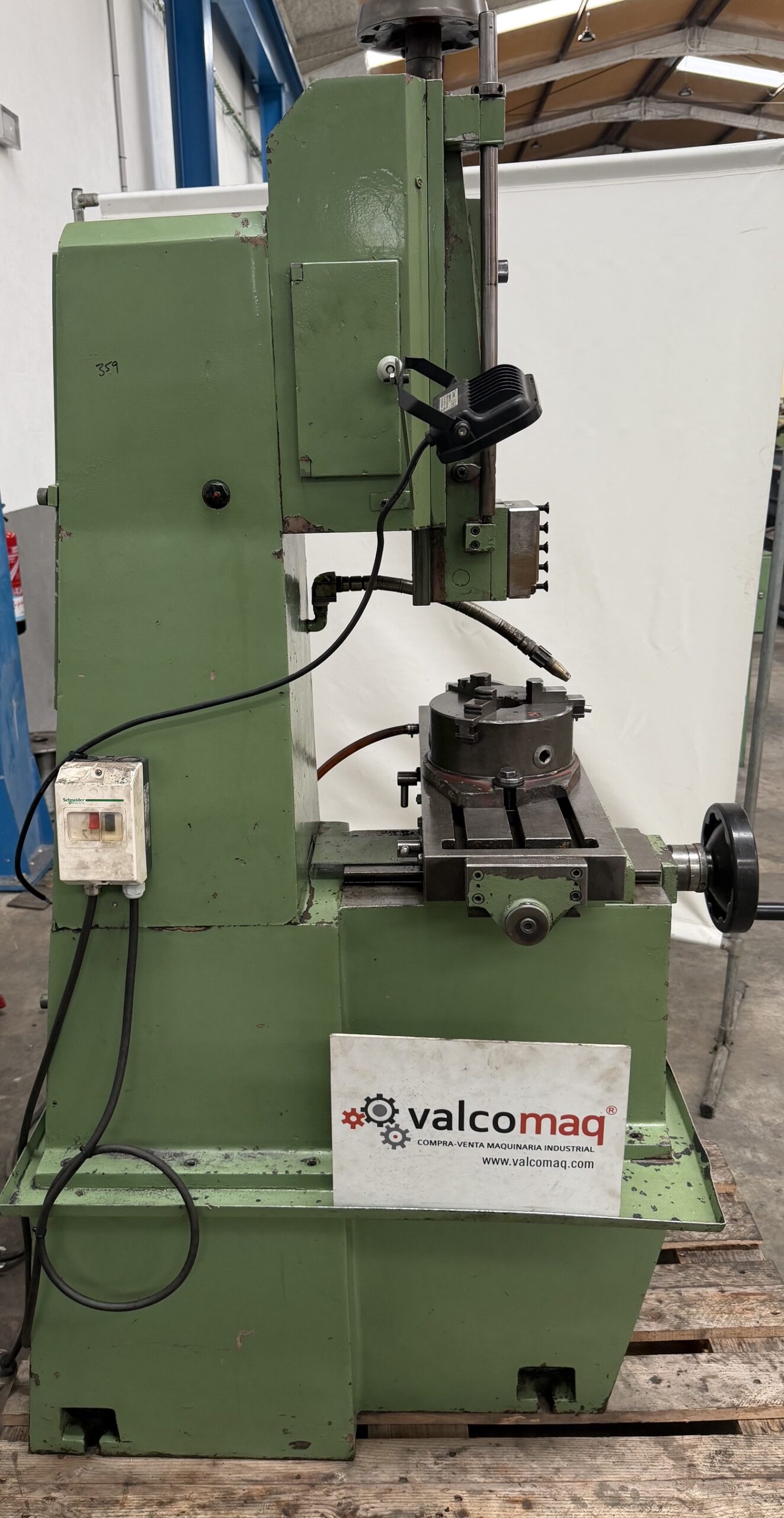

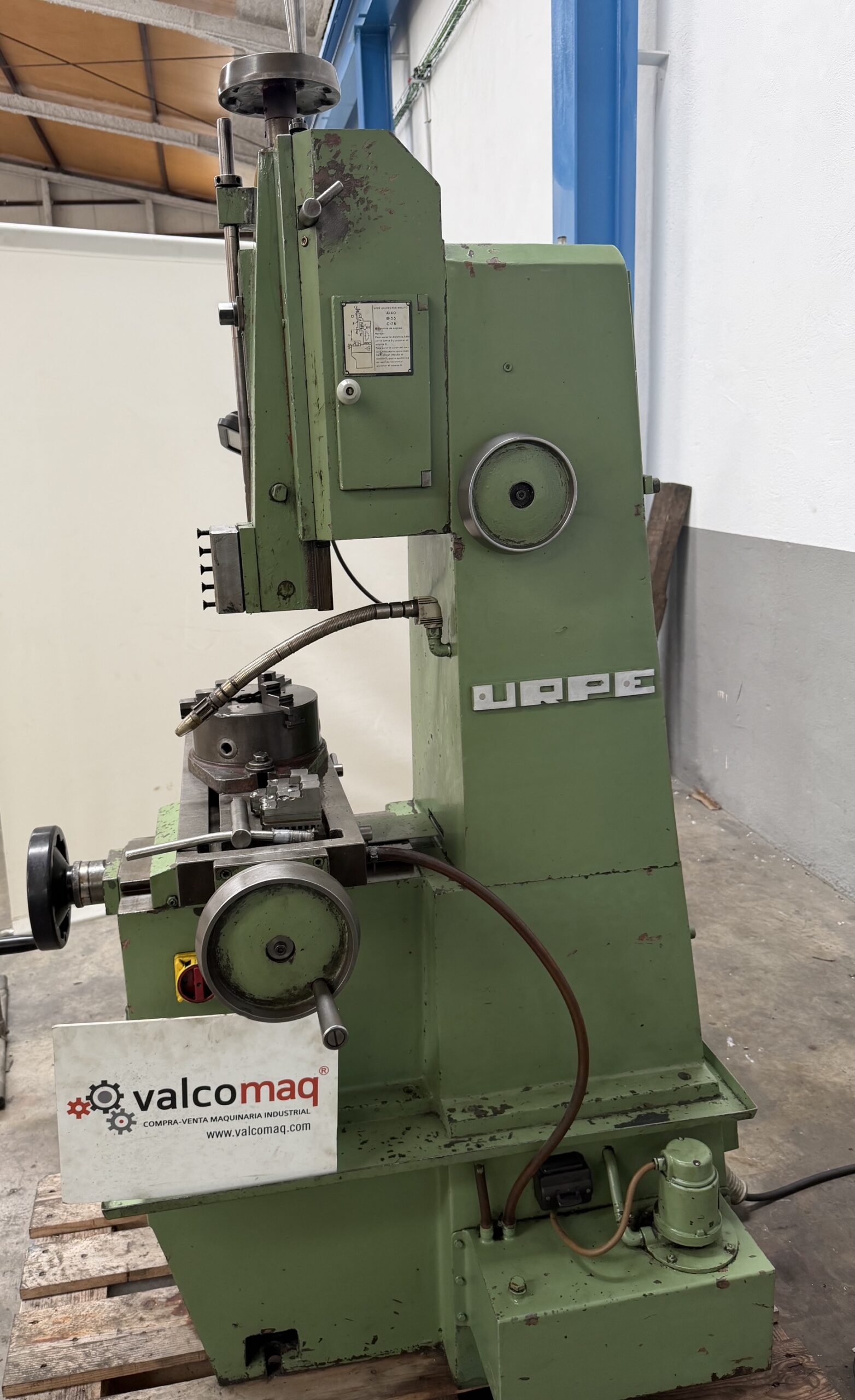

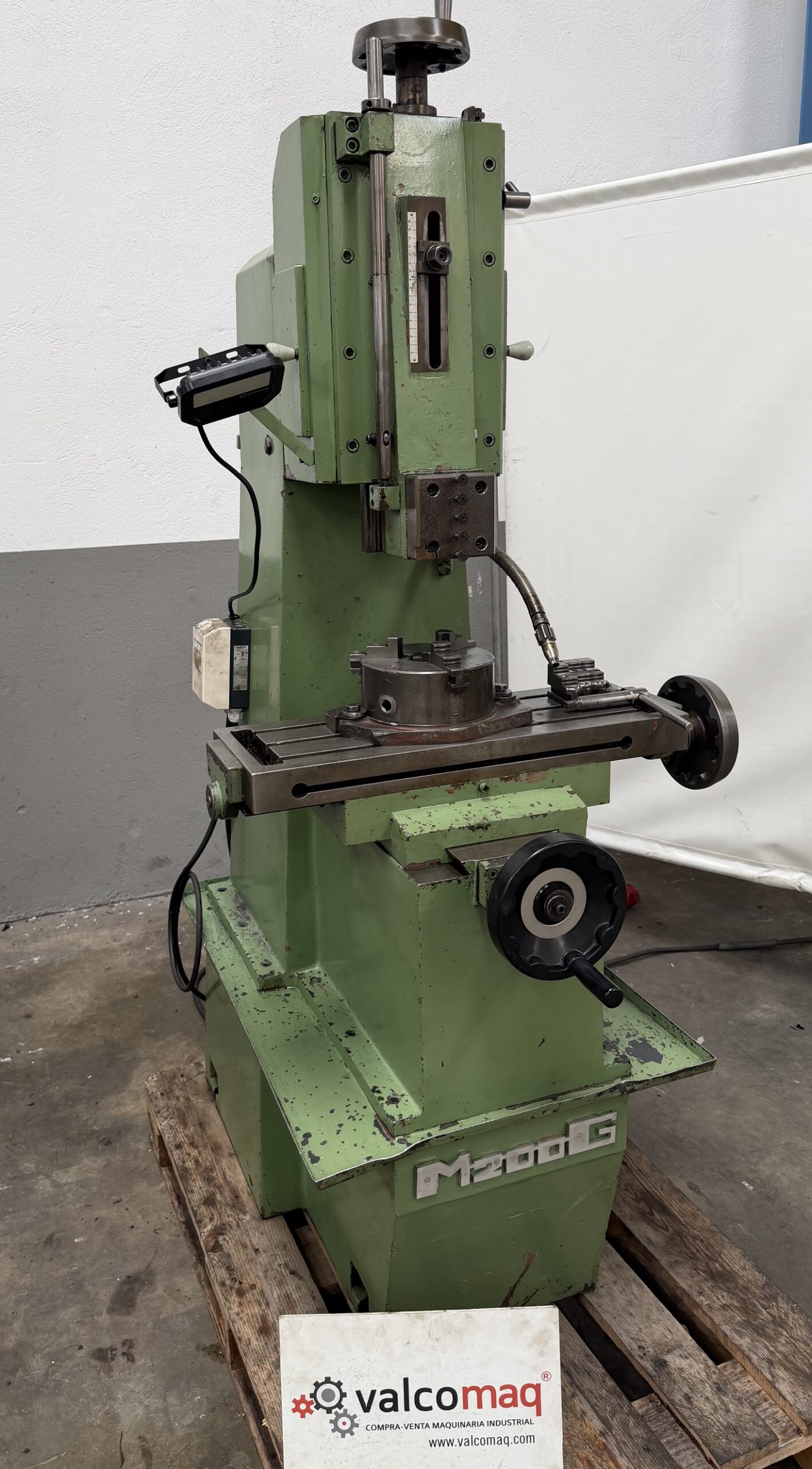

Urpe M-200 G slotting machine with tilting head, 1 HP motor and 666 x 280 mm table.
Main features
Urpe M-200 G slotting machine equipped with tilting head, suitable for vertical and angular machining operations.

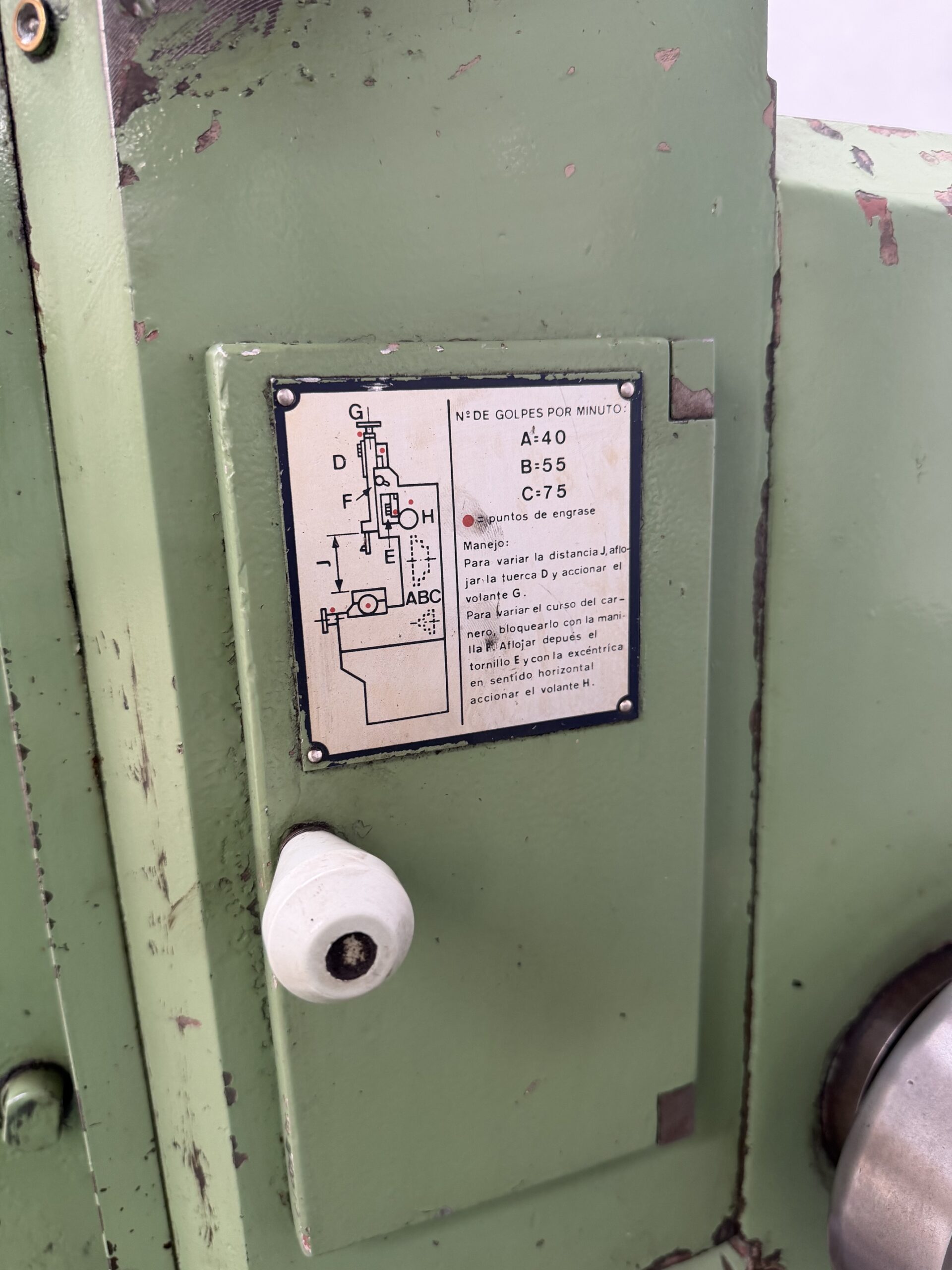

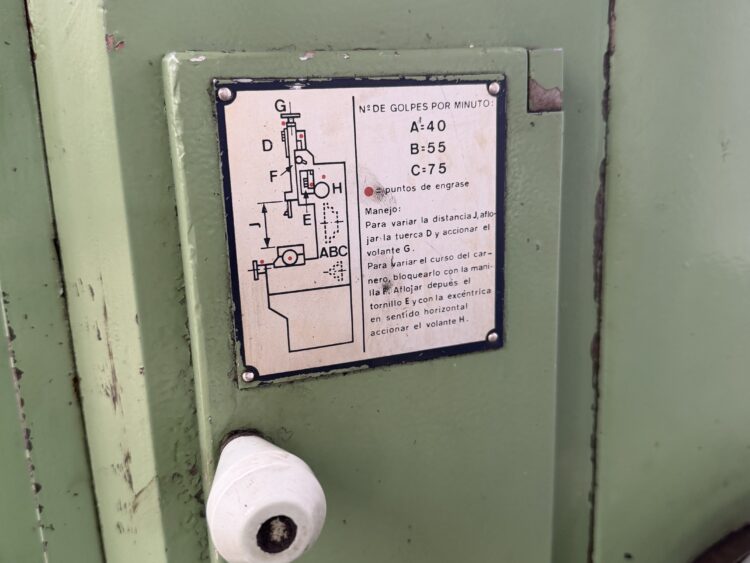

Strokes per minute: 40 / 55 / 75.
Adjustable table-to-ram distance: 181–525 mm.
Maximum tool-to-column distance: 280 mm.
Table size: 666 × 280 mm.
Table travels:
• Longitudinal: 435 mm.
• Cross: 235 mm.
Head:
• Tilting head.
Motor power: 1 HP.
Approximate weight: 700 kg.
Condition: Good general condition.
